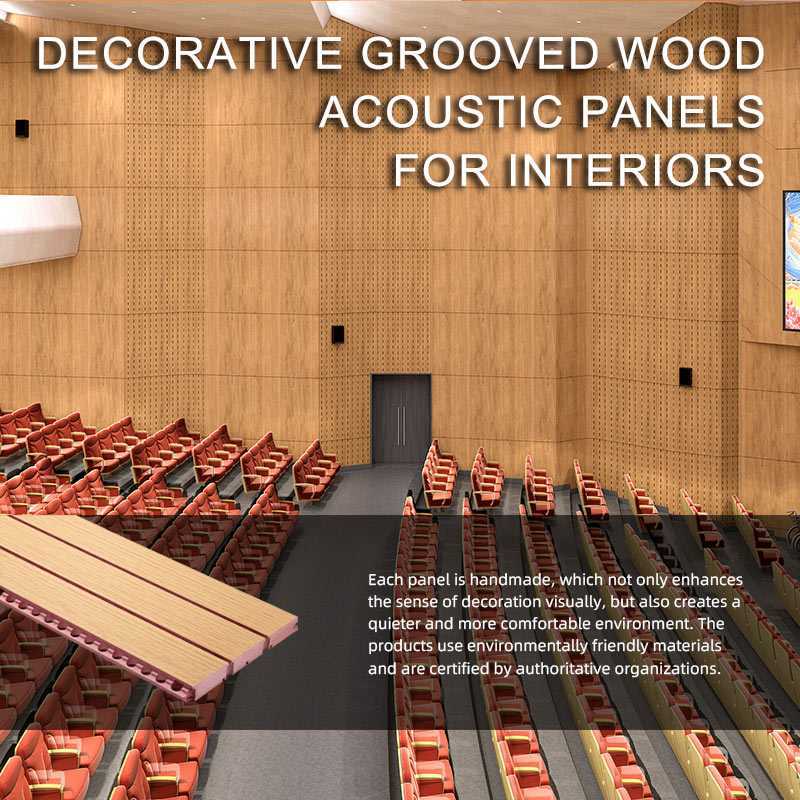

TianGe Acoustic Decorative Grooved Wood Acoustic Panels are crafted from high-density MDF or natural wood veneer, designed with precision-cut grooves that effectively absorb mid and high-frequency sound waves. The Grooved Wood Acoustic Panels feature an acoustic felt backing that enhances sound insulation and minimizes echo, ensuring excellent noise reduction performance. Their durable surface treatment resists warping, fading, and moisture, maintaining both aesthetic and acoustic integrity over time.
TianGe Grooved Wood Acoustic Panels come in six substrate types: E1 grade environmentally friendly substrate, E1 grade flame-retardant substrate, black ceramic aluminum substrate, white ceramic aluminum substrate, red ceramic aluminum substrate, and carbon fiber substrate. Finishes include melamine, natural wood veneer, technology wood veneer, fireproof board, paint, metal, and leather. The noise reduction coefficient (NRC) is ≥0.6. They are widely used in recording studios, concert halls, theaters, practice rooms, auditoriums, corridors, gymnasiums, conference rooms, multi-functional halls, banquet halls, and other venues.
Four advantages of the Groove Wooden Acoustic Panel:
1> Stable product quality and zero complaints.
2> The sound absorption effect is good, and the decoration is strong.
3> Environmentally friendly and fireproof.
4> Wide range of applications: Various places with high acoustic requirements.
|
Product Type
|
Grooved Wood Acoustic Panels | Auditorium Wall Soundproofing
|
|
Standard Model
|
59/5 60/4 28/4 29/3 13/3 14/2
|
|
Non-Standard Model
|
40/3 38.5/4 18/3 17/4 8/3 8/2 5/3 6/2
|
|
Material
|
High qulity MDF board
|
|
Basic Material
|
General, Economic, Fireproof, Moisture-proof, Composite, Magnesium, solid wood etc.
|
|
Finish
|
Melamine, Natural Wooden Veneer, Fireproof board, Painting,Metal, Technology veneer, Leather etc.
|
|
Color
|
Color chart or customized
|
|
Size
|
133*2440 mm / 197*2440 mm
|
|
Thickness
|
12mm / 15mm / 18mm
|
|
Fireproof Grade
|
B
|
|
ECO Grade
|
E
|
|
Application
|
Gymnasium, Meerting room, Multi-function hall, Auditorium, Conference room, Banquet hall, etc.
|
If you have more question, please feel free to contact with us, Thank You !
WeChat/WhatsApp: +8617322789466
Email: fstiange@gmail.com
TianGe Acoustic Address: No.16, Jujin Road, Baini Town, Sanshui District, Foshan City, Guangdong Province, China.
1> First fix the aluminum profile onto the wooden frame or bottom board, and their distance suggested 6about 600mm.
2> Filled the 32-64kg/m density acoustic cotton among aluminum profiles.
3> Use the clips to fix the Acoustic Panel to the aluminum profile.
4> When install several acoustic panel, the distance between noses to noses suggested 2-3mm.
5> If install the acoustic panel in the horizontal way, then the notch of the panel should face down, and it need to be fixed tight with clips. After that install pieces and pieces of acoustic panel onto the lowest one.
