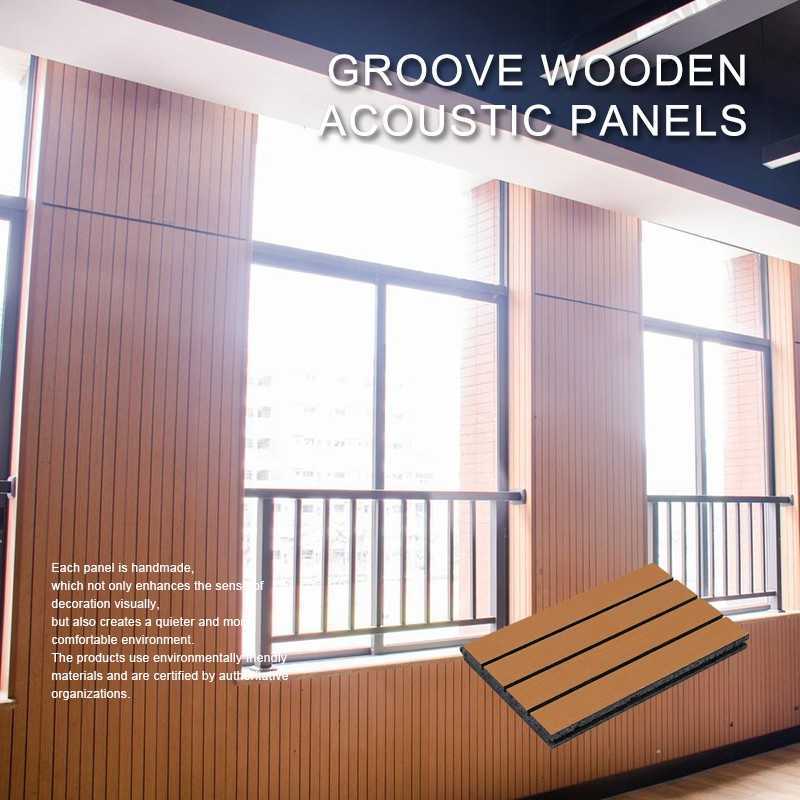

TianGe Acoustic Groove Wooden Acoustic Panel is a premium sound-absorbing material that seamlessly blends modern architectural design with exceptional acoustic performance.
Crafted from high-quality wood, it features precisely engineered grooves that effectively reduce echo and noise, creating a more comfortable and balanced sound environment.
Its sleek and elegant design makes it an ideal choice for a variety of spaces, including offices, conference rooms, studios, and homes. Easy to install and available in multiple finishes, the Groove Wooden Acoustic Panel enhances both the aesthetics and acoustics of any interior.
Four advantages of the Groove Wooden Acoustic Panel:
1> Stable product quality and zero complaints.
2> The sound absorption effect is good, and the decoration is strong.
3> Environmentally friendly and fireproof.
4> Wide range of applications: Various places with high acoustic requirements.
|
Product Type
|
Groove Wooden Acoustic Panels Premium Sound Performance
|
|
Standard Model
|
59/5 60/4 28/4 29/3 13/3 14/2
|
|
Non-Standard Model
|
40/3 38.5/4 18/3 17/4 8/3 8/2 5/3 6/2
|
|
Material
|
High qulity MDF board
|
|
Basic Material
|
General, Economic, Fireproof, Moisture-proof, Composite, Magnesium, solid wood etc.
|
|
Finish
|
Melamine, Natural Wooden Veneer, Fireproof board, Painting,Metal, Technology veneer, Leather etc.
|
|
Color
|
Color chart or customized
|
|
Size
|
133*2440 mm / 197*2440 mm
|
|
Thickness
|
12mm / 15mm / 18mm
|
|
Fireproof Grade
|
B
|
|
ECO Grade
|
E
|
|
Application
|
Gymnasium, Meerting room, Multi-function hall, Auditorium, Conference room, Banquet hall, etc.
|
>>Click to view more product cases
If you have more question, please feel free to contact with us, Thank You !
Telephone/Whatsapp: +86 17322789466
Email: fstiange@gmail.com
TianGe Acoustics Address: Jujin Road, Baini Town, Sanshui Distric, Foshan City, Guangdong Province, China.
1> First fix the aluminum profile onto the wooden frame or bottom board, and their distance suggested 6about 600mm.
2> Filled the 32-64kg/m density acoustic cotton among aluminum profiles.
3> Use the clips to fix the Acoustic Panel to the aluminum profile.
4> When install several acoustic panel, the distance between noses to noses suggested 2-3mm.
5> If install the acoustic panel in the horizontal way, then the notch of the panel should face down, and it need to be fixed tight with clips. After that install pieces and pieces of acoustic panel onto the lowest one.
